Structure – B1
Contributes to compliance with B1.3.1, B1.3.2, B1.3.3 and B1.3.4 requirements for structural performance.
Key Features
01
Rigid Air Barrier & Secondary Weather Protection

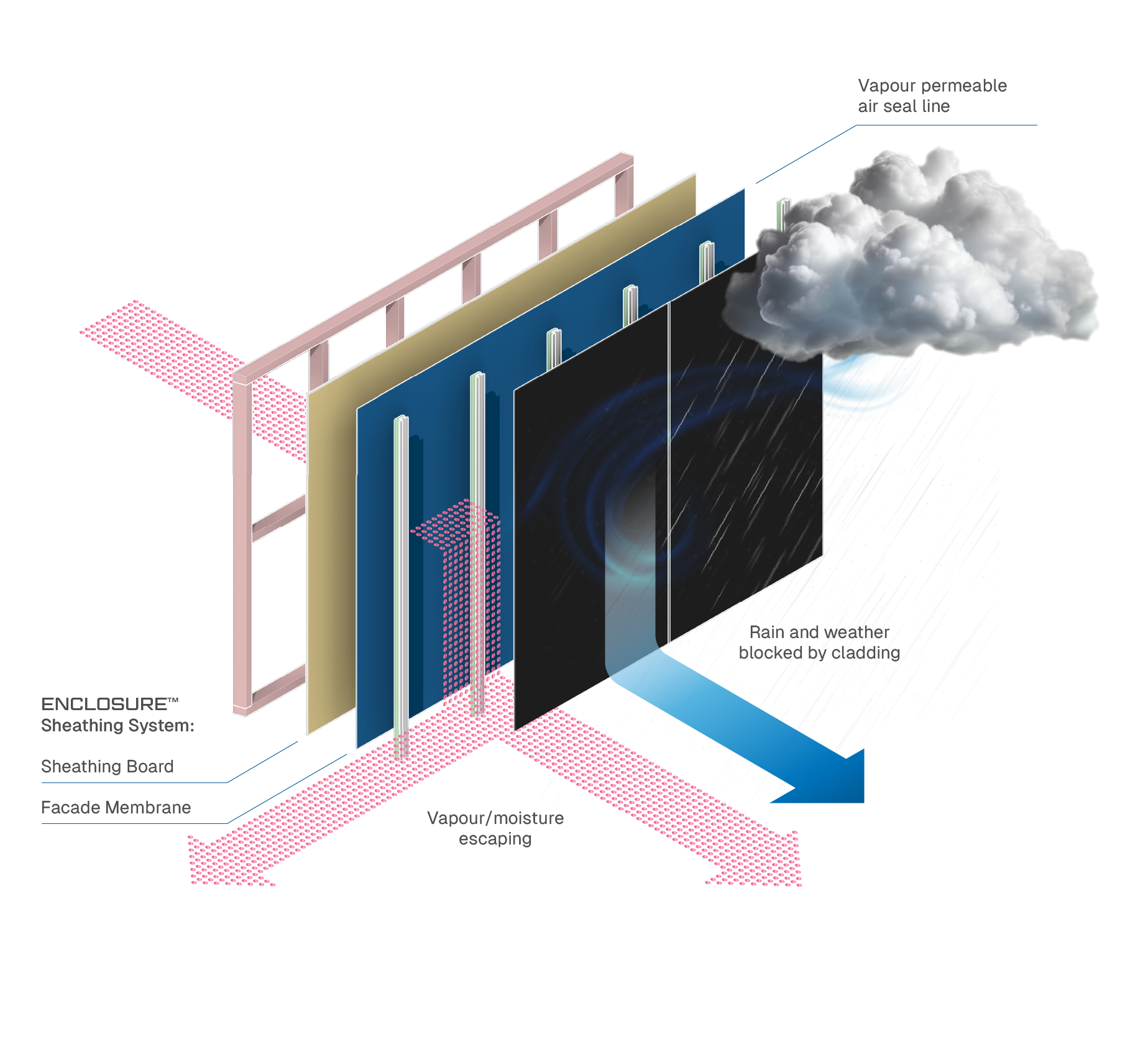

The ENCLOSURE™ Sheathing System combines the sheathing board with the ENCLOSURE™ Façade Membrane and associated flashing tapes to form a vapour-permeable air seal line within the wall assembly. Together, these components provide airtightness, secondary weather resistance, and moisture management behind the external cladding system, supporting the long-term performance of the building envelope.
02
Structural Bracing Capability
ENCLOSURE™ Sheathing System can be used as part of a wall bracing system for timber-framed buildings within the scope of NZS 3604. Wind and earthquake bracing units are achieved through the integrated performance of the ENCLOSURE™ Sheathing Board, proprietary seismic brackets, and prescribed fixing pattern, providing structural resistance as part of the complete wall assembly.
03
Supports Fire-Rated Wall Construction
ENCLOSURE™ Sheathing System can be used in both loadbearing and nonloadbearing fire rated wall construction, including fire rated systems for timber-framed buildings.
ENCLOSURE™ Sheathing System
Technical Highlights
- Product type
- Rigid wall sheathing system
- Primary function
- Airtightness and secondary weather resistance
- Suitable substrates
- Timber framing and light gauge steel framing
- Wind zones
- Up to and including Extra High (NZS 3604)
- Minimum cavity requirement
- 18 mm drained cavity
- Bracing capability
- Can be used as a wall bracing system for timber-framed buildings within the scope of NZS 3604
- Fire-rated construction
- Suitable for tested fire-rated wall assemblies (AS 1530.4:2014)
Application
Scope of Use
ENCLOSURE™ Sheathing System is suitable for external wall pre-cladding applications where:
- Timber framing is designed within the scope of NZBC E2/AS1
- Light gauge steel framing complies with NASH Standards
- Buildings are located in wind zones up to and including Extra High
- Cladding systems are installed over a minimum 18 mm drained cavity
- Walls are located at least 1 metre from the relevant boundary
The system may also be used as part of fire-rated wall construction and timber-framed bracing systems within the scope of its testing and supporting documentation.
Compliance
Compliance with the New Zealand Building Code
ENCLOSURE™ contributes to compliance with the following NZBC clauses when used as part of a compliant wall assembly:
Durability – B2
Currently undergoing testing to demonstrate compliance with B2 durability requirements B2.3.1 (a) & B2.3.1 (b).
Protection from Fire – C3
Contributes to compliance when incorporated into tested fire-rated wall assemblies C3.6 & C3.7.
External Moisture – E2
Contributes to compliance E2.3.2 when used within drained and ventilated cavity wall systems.
Hazardous Building Materials – F2
Complies with the requirements of NZBC Clause F2.3.1.
Why specify
Why Architects Specify ENCLOSURE™ Sheathing System
Architects specify the ENCLOSURE™ Sheathing System because it shifts building envelope design from a façade-first approach to a performance-first methodology.
- Provides airtightness and secondary weather resistance
- Contributes to structural bracing performance
- Compatible with fire-rated wall construction
- Supports timber and steel-framed building systems
- Compatible with a wide range of cladding materials
- Forms a key component within an integrated enclosure strategy
ENCLOSURE™ Sheathing System helps create high-performance wall assemblies where structure, weather resistance, fire performance, and façade systems work together as a coordinated whole.
Assurance
Warranty & Maintenance
Sheathing Board, the manufacturer provides a limited warranty covering manufacturing defects for a duration of 5 years from date of purchase. Adhesive Membrane, the manufacturer provides a warranty covering deviations from product specification under normal use conditions for a duration of 10 years from the date of purchase.

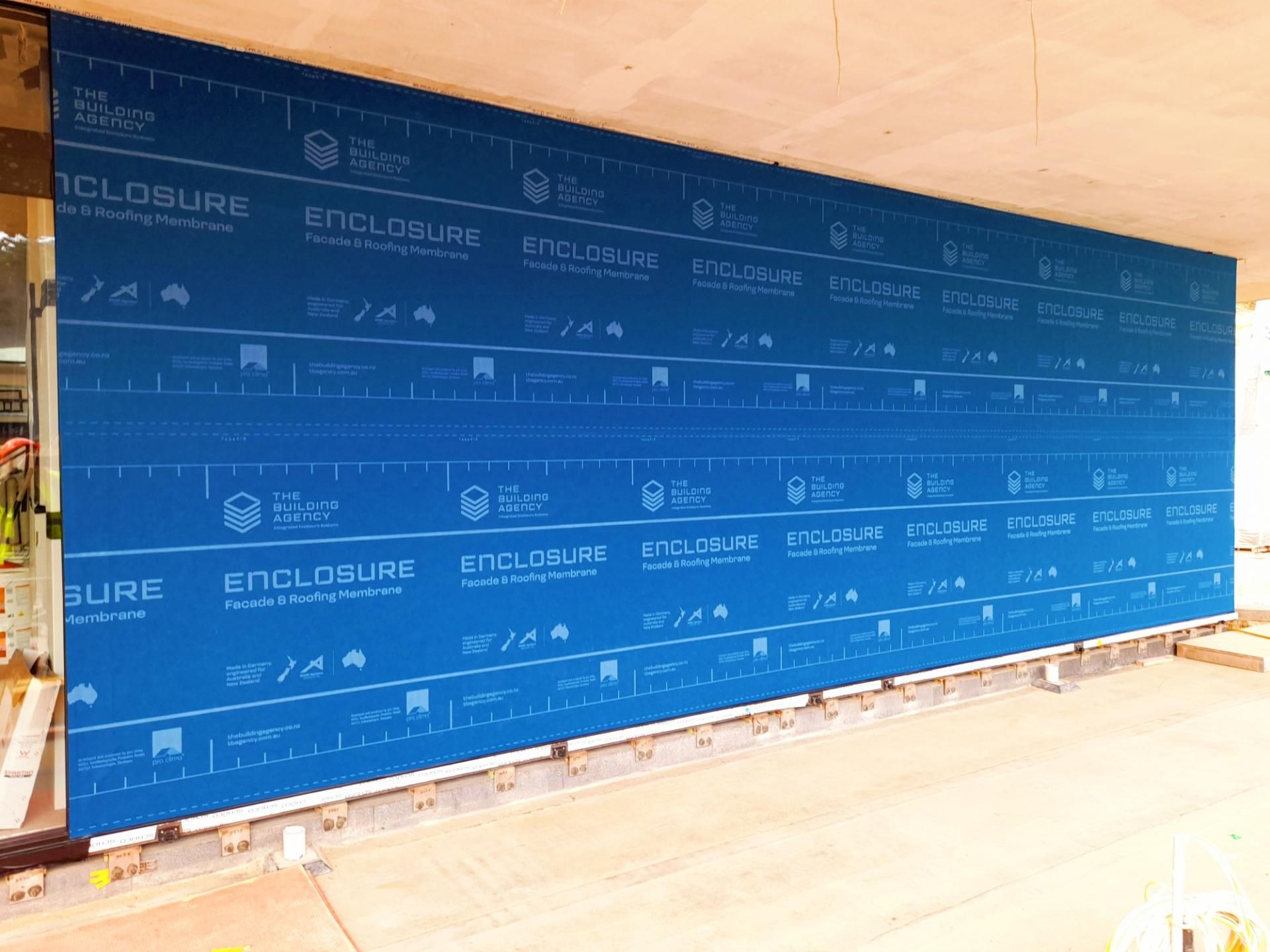

Installation Gallery
ENCLOSURE™ Sheathing System
Photos of the ENCLOSURE™ Sheathing System
Selected Project
ENCLOSURE™ Sheathing System
Installation guide, BPIRs, EPD, and brochures
Document library
Access the full ENCLOSURE™ Sheathing System technical library including installation guide, BPIR certifications, Engineers Judgement Report, EPD, and Brochures
